Pintle Tow Bar Adaptor

Wholesale prices are available to approved account customers only.

SKU: N/A Category:
Pay by credit card or paypal.

The pintle hook tow bar adaptor is designed and engineered to allow standard 2” tow bar receivers to connect to bolt-on Pintle Hooks.

Australian Made and Solid cast for the highest quality engineering. Suitable for mining applications where a height change is required in either downward or upward positions.

Consider why this adaptor is different from all other adaptors on the market.

Fabricated Product Specifications

  • Materials: K14045 Steel, 250G Mild Steel
  • Coating: Black Powder Coated
  • Hole Spacings: 85mm x 45mm
  • Mounting Hole: 12.50mm

Cast Pintle Product Specifications

The Heavy Duty Pintle Hook Adaptor has three optional mounting locations to accommodate trailers with different drawbar heights.

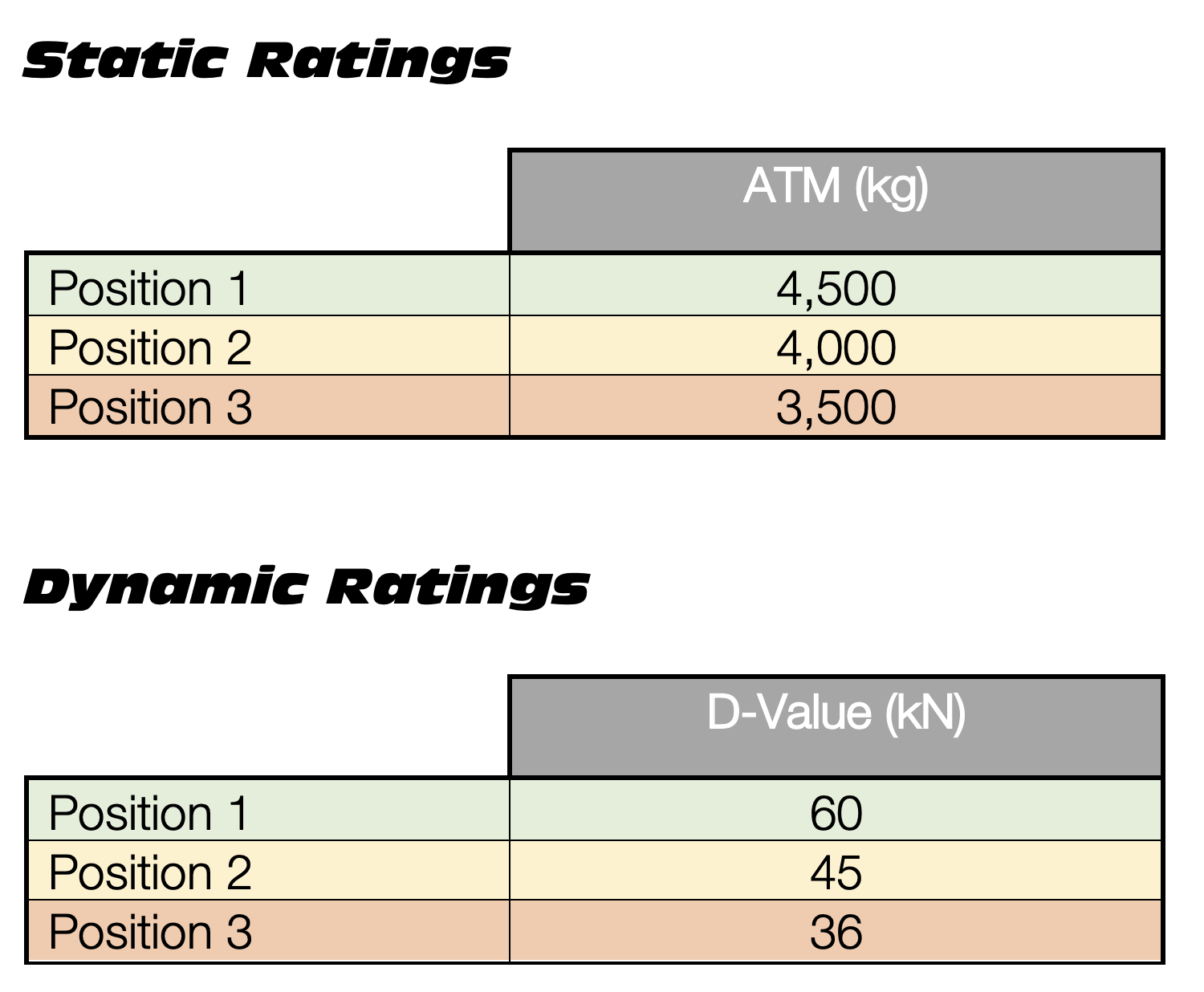

Static and Dynamic Ratings of the Pintle Hook Tow Bar Adaptor CM511CM511 Coupling Mount Reference Positions

Australian Made

Australian-Made Pintle Hook Adaptor for Trucks

Purchase our standard fabricated pintle hook adaptor here.

Solid Cast Steel

The pintle hook adaptor is solid cast, has no welds, and has no weak points. Some products on the market are hollow inserts or otherwise fabricated. Weakness in fabricated models is located at the weld points. However, other manufacturers do not have the facilities to pre-heat, leading to a lower-strength product.

Truck Pintle Receiver Arm Specifications

  • Tensile strength is a minimum of 500 Mpa
  • Yield strength is a minimum of 320 Mpa
  • Weight = 14kg
  • Elongation is a minimum of 7%
  • Brinell hardness is 170-230
  • Plate Size = 195 x 125mm x 14mm thick
  • 50.8mm Receiver Arm
  • It fits all standard pintle hooks

Other applications

Currently, we have no demand for a 70mm ball mount with a working capacity of 4.5t. If you require this fitting, please get in touch with us, and we will consider a new addition to this range.

Truck High Tensile Retaining Pin

Insert into a standard 50mm x 50mm box section tow bar and retain using a 16.5mm high tensile bolt. Finally, we recommend using the 6-tonne High Tensile pin for these robust applications.

Additional information

Weight8 kg
Dimensions15 × 15 × 25 cm
Select Standard/Heavy Duty

Fabricated, Cast
