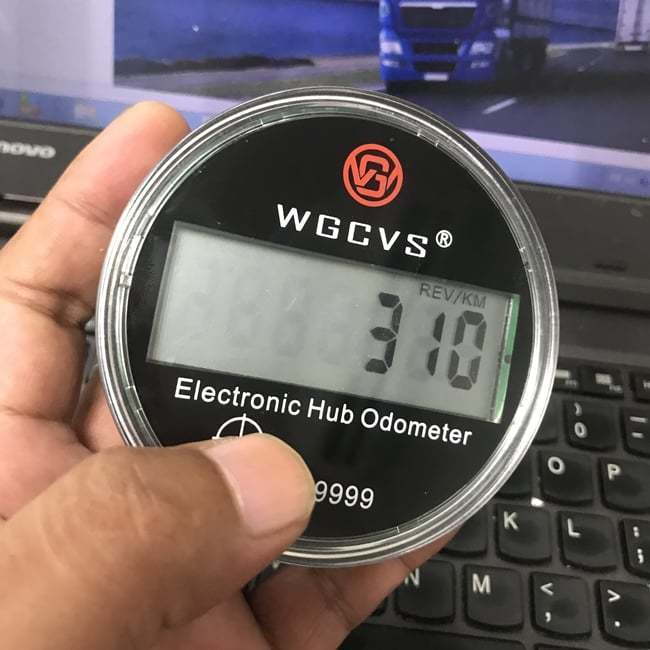

Electronic Truck Hubodometer

Bluetooth Hubodometer for Trucks

The Bluetooth Truck Hubodometer is a precision tool to ensure an accurate kilometre logbook for truck maintenance.

Once the APP has been downloaded on your IOS or Andriod Device, you will be able to program the device by simply inputting the circumference of the type and desired mileage.

• Apple App - Search WG-HUBO AUS
• Andriod - Search Texcan - AUS

Following this, once installed for the first time, hubodometers are able to be re-programmed should the tyres be changed or zeroed on the next service event.

A kilometre log book is the preferred option over a time-based log book.

The battery life of the Bluetooth hubodometer is between 4 years and seven years. Sleep mode engages at zero motion resulting in battery savings.

Please check the hole size in the wheel. The outside diameter of the Bluetooth hubodometer is 95mm.

Alternatively, the Bluetooth hubodometer fits into your own housing.

Special Note: a Bluetooth hubodometer measures the circumference of the new tyre size. Worn and older tyres will vary a little to the actual distance covered.

How to Program your Bluetooth hubodometer

An app is required to program your Bluetooth Hubodometer. WGCVS Hub Odometer from your app store (MaDao).

Program the Bluetooth hubodometer revolutions per kilometre for the tyre size available from the above links.

The how to program the Bluetooth hubodometer sheet is available for download and printing by clicking this - link.

The app allows you to set and reset your Bluetooth hubodometer. The app does not record kilometres.

Fixing

On the back of the Bluetooth hubodometer is a 1/2" UNF Stud and nut. This stud is removed when used with a hub attachment.

Log Book

A good start for your logbook caravan servicing would be

• 500 kilometres after taking delivery.
• 5000 kilometres highway or 1000kg offroad.

Bluetooth hubodometers installed on caravans, and other rigs trigger a service level for manufacturers by measuring kilometres traveller. Warranty issues are easier to understand when accurate kilometre reads are available.

The manufacturer's checklist will incorporate some of the items below. However, this same list is a good start for the DIY brigade, with older rigs.

Did you know

The car tyres are tuned to your car speedometer from the factory. Subsequently, tyres have a specific circumference that needs to be matched to your speedo.

Tyre wear as little as 10mm will drastically lower the actual speed, and the distance you have travelled. The gearbox rotations governs the speedo.

An example is, if you are driving at 105 kilometres per hour, your actual speed will be 100 kilometres per hour on used tyres.

To confirm your actual speed, we recommend using the GPS in your mobile phone for a more accurate reading.

Probably a good explanation of why the Police have let me go after my speedo said 105 kph. The speedo is often wrong unless the car tyres are new.
